Linux load的问题

背景

如果对linux load不熟悉的话,可以先看一下这里

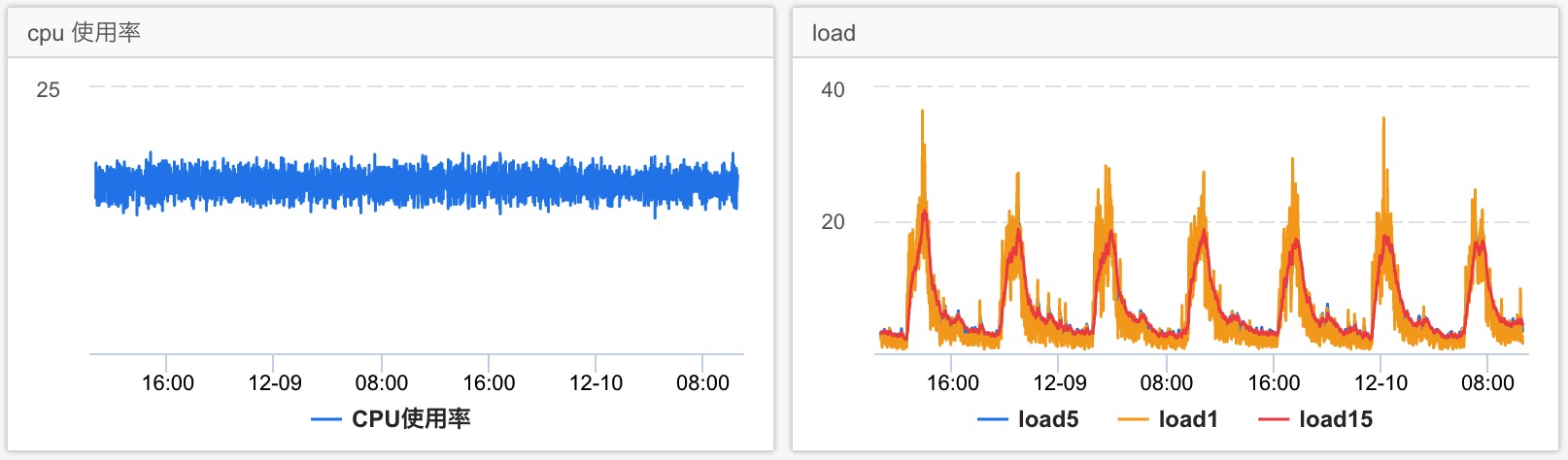

最近线上的系统(java应用)出现了一个很诡异的问题,就是cpu非常平稳的情况下load呈现出周期性的波动(如上图).如果把JVM停掉,又恢复正常了.花了不少时间排查,排除了是定时任务,IO.也排除了是JVM笨笨的问题.最后怀疑是内核的问题,于是准备写个测试程序验证一下.

测试程序

问题来了.怎么写一个消耗指定cpu百分比的测试?消耗cpu就是指的就是消耗cpu的时间.所以基本的原理就是按百分比吃掉cpu的时间.比如要消耗30%的cpu,假设单位时间是100ms,那就是跑满30ms,然后sleep 70ms.代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
/**
* 指定cpu的使用率(单核版本)<br>
* 原理:指定一个固定的时间单元,比如说是100ms,如果要跑30%的cpu,就需要跑30ms,休息70ms
*
* @author charles
*/
public class CpuUtil_Single {

public static final int TIME_UNIT_MS = 100;

public static double tmp;

public static void main(String[] args) throws Exception {
// default is 30%
int cpuUtil = 30;
if (args.length != 0) {
cpuUtil = Integer.valueOf(args[0]);
}
if (cpuUtil < 5 || cpuUtil > 80) {
throw new IllegalArgumentException("cpuUtil must be between 5 and 80");
}
int runTime = TIME_UNIT_MS * cpuUtil / 100;
int sleepTime = TIME_UNIT_MS - runTime;
System.out.println("runTime(ms):" + runTime + ",sleepTime(ms):" + sleepTime);
while (true) {
eatCpuTime(runTime);
Thread.sleep(sleepTime);
}
}

public static void eatCpuTime(long useTimeMs) {
long start = System.nanoTime();
long useTimeNano = useTimeMs * 1000000;
while (true) {
// eat cpu,这里的10000不宜过大,如果设置过大会导致控制的精度不够
for (int i = 0; i < 10000; i++) {
tmp = Math.sqrt(i) * Math.sqrt(i);
}

if ((System.nanoTime() - start) >= useTimeNano) {
break;
}

}
}

}

运行一下试试:

1
2
3
4
javac CpuUtil_Single.java

//后面的参数表示,把cpu跑到40%
java CpuUtil_Single 40

如果你的机器是单核的cpu,上面的代码没啥问题,还是比较准的.但如果是多核的就有问题了,需要改造一下.代码引起的变化可以用top命令看看,前面那个代码只能把其中一个核跑起来,后面这个则是每个核都跑起来了.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;

public class CpuUtil_Multi {

public static final int TIME_UNIT_MS = 100;

public static double tmp;

public static final int CpuCoreNum = Runtime.getRuntime().availableProcessors();

public static ExecutorService MyExecutor = Executors.newFixedThreadPool(CpuCoreNum);

public static void main(String[] args) throws Exception {
// default is 30%
int cpuUtil = 30;
if (args.length != 0) {
cpuUtil = Integer.valueOf(args[0]);
}
if (cpuUtil < 5 || cpuUtil > 80) {
throw new IllegalArgumentException("cpuUtil must be between 5 and 80");
}

int runTime = TIME_UNIT_MS * cpuUtil / 100;
int sleepTime = TIME_UNIT_MS - runTime;
System.out.println("runTime(ms):" + runTime + ",sleepTime(ms):" + sleepTime + ",CpuCoreNum:" + CpuCoreNum);

for (int i = 0; i < CpuCoreNum; i++) {
MyExecutor.execute(() -> {
while (true) {
try {
eatCpuTime(runTime);
Thread.sleep(sleepTime);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
});
}

}

public static void eatCpuTime(long useTimeMs) {
long start = System.nanoTime();
long useTimeNano = useTimeMs * 1000000;
while (true) {
// eat cpu
for (int i = 0; i < 10000; i++) {
tmp = Math.sqrt(i) * Math.sqrt(i);
}

if ((System.nanoTime() - start) >= useTimeNano) {
break;
}

}
}

}

重现问题

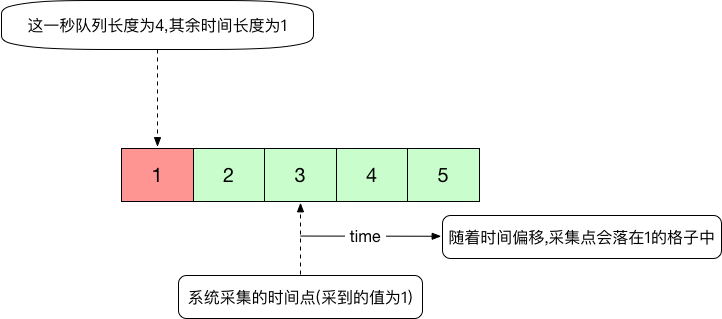

linux 的load其实是大概每隔5s看一次运行队列(在linux中是R+D)长度.系统的负载是很规律的波动的话,这个计算方式就有问题了.为了重现这个问题,需要对上面的代码再做一点改造.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
package name.chengchao.mylinuxtest.cpu;

import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.TimeUnit;

public class CpuUtil_Multi_Interval {

public static final int TIME_UNIT_MS = 100;

// 波动周期
public static final int CPU_WAVE_INTERVAL_SECOND = 5;

public static double tmp;

public static final int CpuCoreNum = Runtime.getRuntime().availableProcessors();

public static ScheduledExecutorService MyScheduledExecutor = Executors.newScheduledThreadPool(1);

public static ExecutorService MyExecutor = Executors.newFixedThreadPool(CpuCoreNum);

public static void main(String[] args) throws Exception {
// default is 30%
int cpuUtil = 30;
if (args.length != 0) {
cpuUtil = Integer.valueOf(args[0]);
}
if (cpuUtil < 5 || cpuUtil > 80) {
throw new IllegalArgumentException("cpuUtil must be between 5 and 80");
}

int runTime = TIME_UNIT_MS * cpuUtil / 100;
int sleepTime = TIME_UNIT_MS - runTime;
System.out.println("runTime(ms):" + runTime + ",sleepTime(ms):" + sleepTime + ",CpuCoreNum:" + CpuCoreNum);

int loopNum = 1000 / TIME_UNIT_MS;

MyScheduledExecutor.scheduleAtFixedRate(() -> {
for (int i = 0; i < CpuCoreNum; i++) {
MyExecutor.execute(() -> {
for (int j = 0; j < loopNum; j++) {
try {
eatCpuTime(runTime);
Thread.sleep(sleepTime);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
});
}
}, 0, CPU_WAVE_INTERVAL_SECOND, TimeUnit.SECONDS);

}

public static void eatCpuTime(long useTimeMs) {
long start = System.nanoTime();
long useTimeNano = useTimeMs * 1000000;
while (true) {
// eat cpu,这里的10000不宜过大,如果设置过大会导致控制的精度不够
for (int i = 0; i < 10000; i++) {
tmp = Math.sqrt(i) * Math.sqrt(i);
}

if ((System.nanoTime() - start) >= useTimeNano) {
break;
}

}
}

}

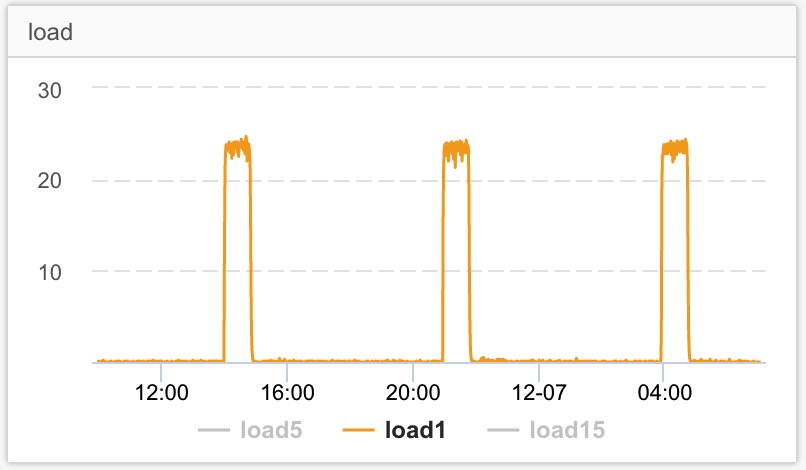

把这个代码跑一个一天,大概就能看到load是上面这个样子!原因就在于系统的load采样周期和cpu波动的周期会慢慢的偏移,重合.偏移,重合.最终导致了这个结果.当然可以把定时任务的周期改成3s试试,还是会有一样的结果只是波动的周期变了而已.
